StoneyCNC i2rA CNC router systems fully supported on the UCCNC controller

Software Considerations

We do not believe in handheld pendant controllers that do not give the user a live real-time view of the machine. A handheld pendant controller is simply a screen with numbers. This is not intuitive. We believe this inherently prevents intuitive machine use and allows mistake to happen more easily. Therefore with the UCCNC controller not only does the operator get a reliable experience, but also an intuitive one with a real live view of the position of the machine relative to the job.

When using CNC routing equipment it is often pertinent to have the person using and operating the machine (the machinist – via machine controller) to be the same person who is generating the designs (designer/CAD) and tool-paths (CAM). If the user is close to both the design and tool-path generation, as well as the machine control, then the designs will be better suited to the tool-paths and the end result is the machining will be more efficient overall. We put a lot of emphasis on the ease of use for the user. We feel this is as important as the machine itself.

Therefore we offer and support a fully integrated CNC software solution that allows any windows based PC/Laptop to be turned into an integrated CNC control platform. Users can create designs, generate toolpaths and carry out machining operations in three simple steps quickly and easily on the one PC. All steps required to go from idea to machining happen on one integrated suite of the software hosted on a PC. There is no need for any file transfers on a USB flash drive and there is a live view of the machine in the software when setting up and operating.

i2rA UCCNC configuration

At STONEYCNC we have extensive field experience with the UCCNC controller supplied to a vast range of application areas and clients. Order your UCCNC ready i2rA today!

  • Real-time feedback of the machine position to minimise mistakes

  • Unmatched graphical user feedback to the operator

  • Driver certification on windows XP, 7, 8, 8.1 and 10

  • Compatibility with a range of common CAM packages

  • Very intuitive operation for fast learning

  • UCCNC controller can support laser engraving systems

  • The UCCNC is fully future-proofing your learning

  • All our CNC systems run on the UCCNC controller

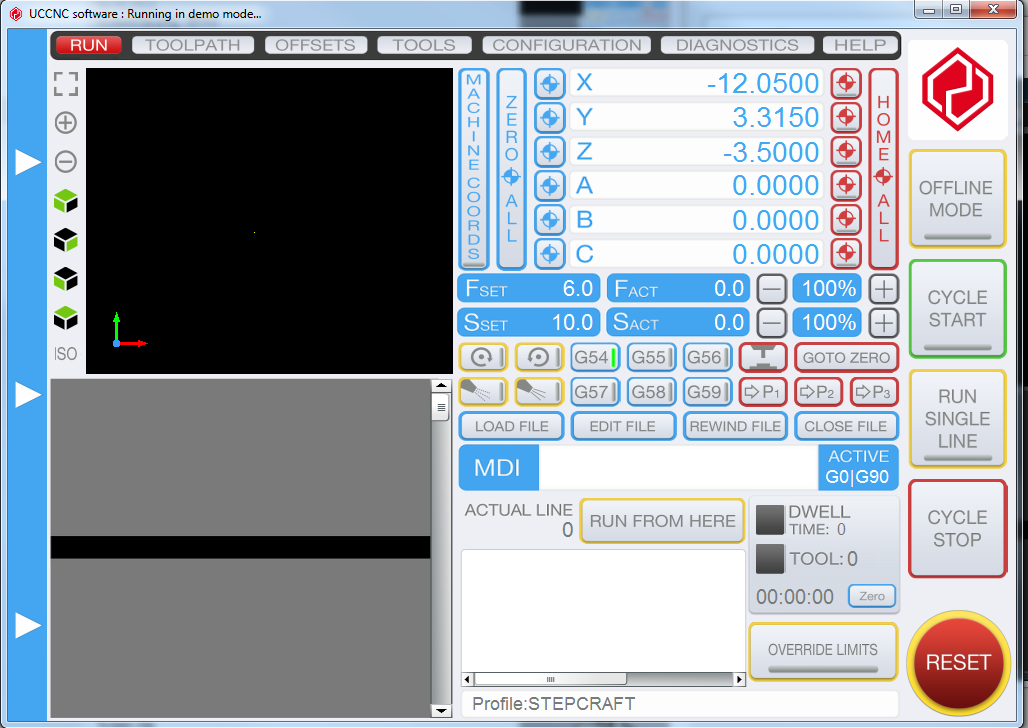

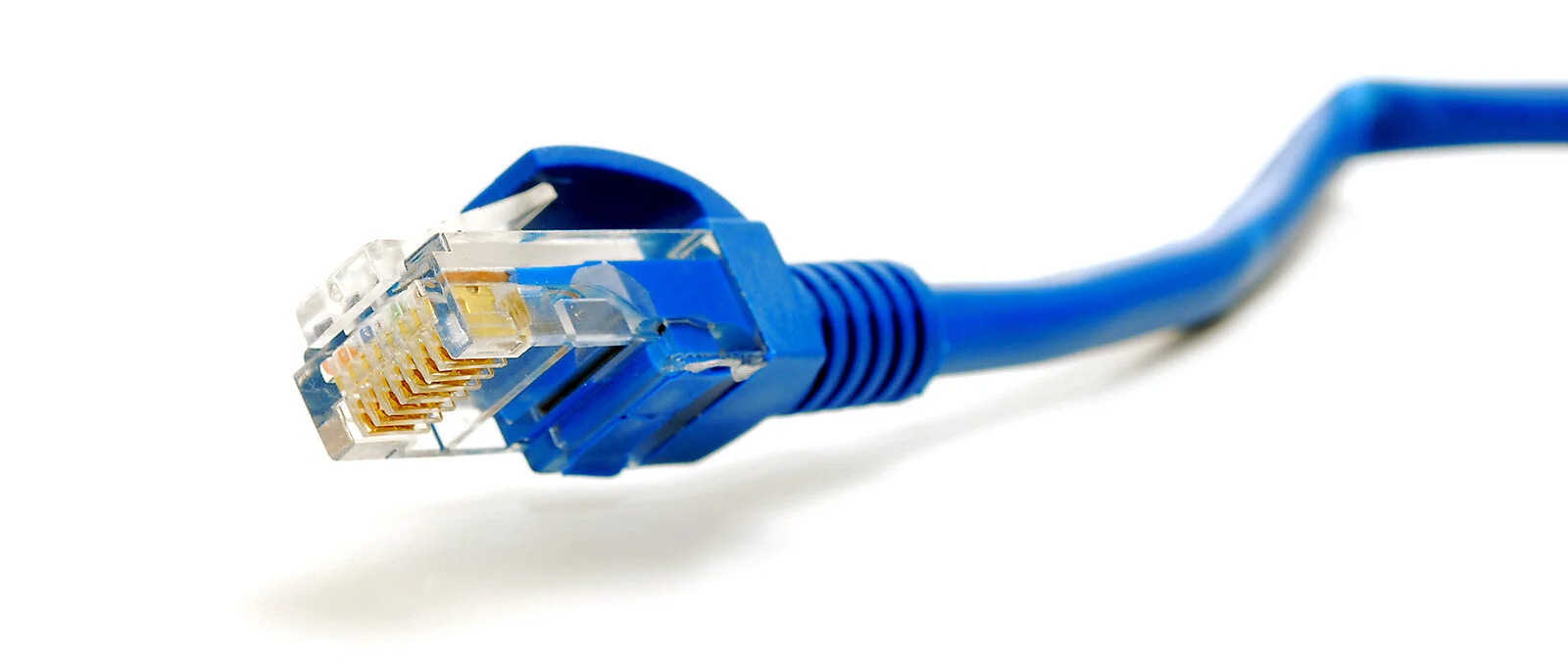

UCCNC ethernet controller

  • UCCNC is a fully production-ready industrial machine controller.

  • The UCCNC can be used to control the machine manually (jogging and moving etc) and allows Gcode to be loaded

  • Real-time live view of machine position at all times relative to the loaded job

  • The live view significantly helps visualise and understand the operation of the i2rA routers

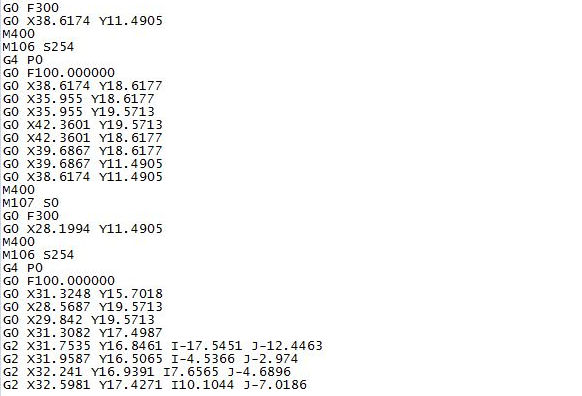

Gcode

Note: You do not need to know what Gcode is or be able to understand it to run CNC machines

As the UCCNC controller can run Gcode it opens up a variety of doors in terms of CAM software systems that are compatible

CAM software is the software that allows you to convert your designs into Gcode

In order to fully realised the power of the UCCNC we need to use a second piece of software that can generate the required Gcode

CAD/CAM | Design and Gcode Generation

You do not need to be a skilled CNCist,, nor know the intricacies of Gcode to use the software we support. The guys a Vectric have done a great job of providing user-friendly CAM packages. Cut2D and VcarvePro are the 2D CAM packages we support. You can design your shapes in both programs, or import your files from other CAD/Graphics packages (such as Illustrator, Sketchup, CorelDraw, AutoCAD, TurboCAD, Solidworks, CREO, Catia etc).

Once you have created/imported your part shape a few simple steps are applied to tell the software what machine, cutters and speeds you want to use. Then with the click of a button, you can export all the information (As Gcode) to the UCCNC and begin machining.

CAD-CAM setup using VcarvePRO

  • Job Setup

  • Drawing and designing

  • Applying tooling strategies

  • Exporting the Gcode


2022 update: We have rebranded our “AXIOM” line of CNC routers to “i2rA” in line with the Stoney CNC i2r (imagination to reality) brand.
